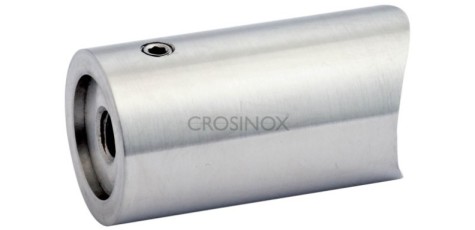

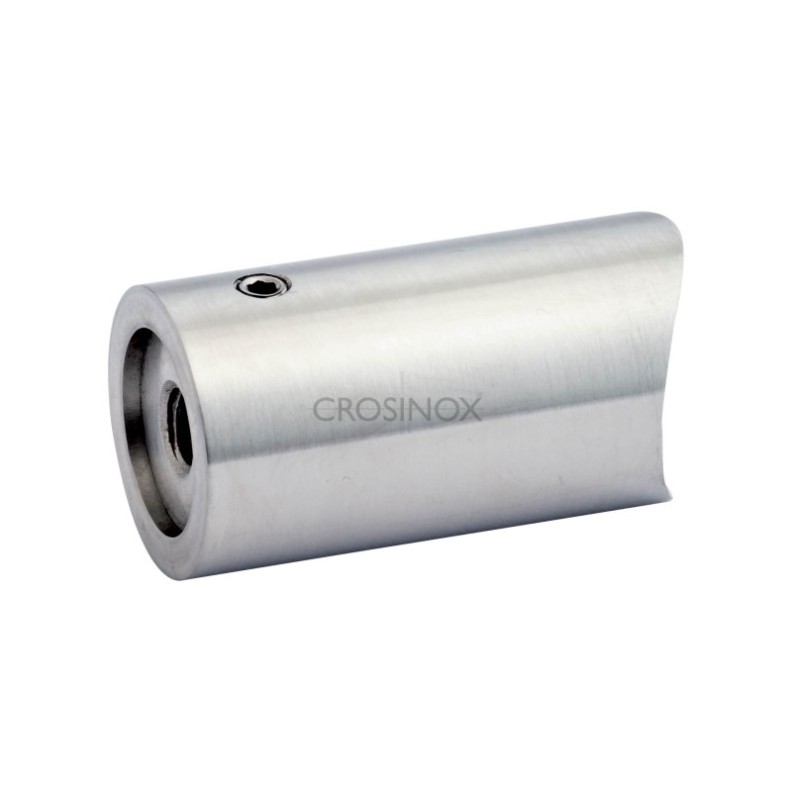

Straight tube connector

Straight tube connectors:

• CN8700730 Straight tube connector, tube 30 x 30 mm V4A, polished

• CN8700740 Straight tube connector, tube 40 x 40 mm V4A, polished

Technical Characteristics:

Product Code	CN8700730	CN8700740
Material	AISI 316	AISI 316
Surface	satin	satin
Type	two-piece, for square tube	two-piece, for square tube
Pipe Fitting	straight	straight

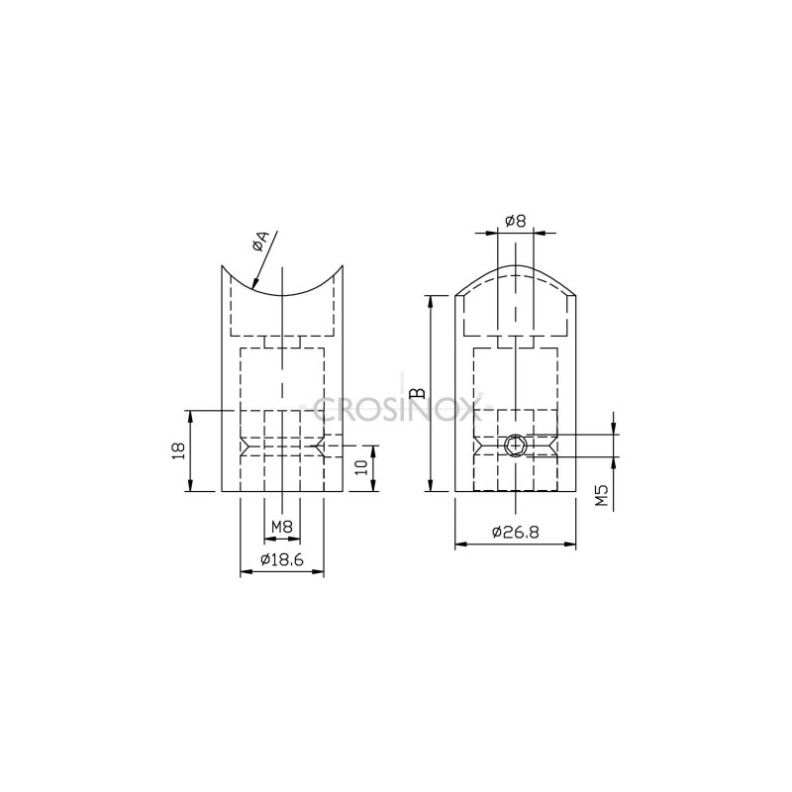

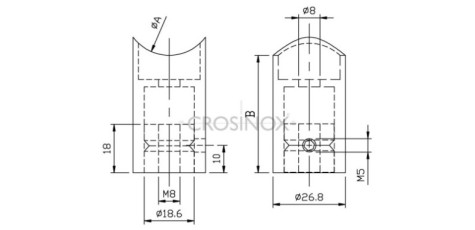

Details	A=41; B=30,2; C=16; D=8,5 Hole=30 mm x 30 mm	A=47; B=40,2; C=16; D=8,5 Hole=40 mm x 40 mm
