Round Cap - Terminal

Caps:

• CN3600400 cap with knurl, tube Ø 33,7 x 2,0 mm hollow V4A, polished

• CN3600410 cap with knurl, tube Ø 33,7 x 2,6 mm hollow V4A, polished

• CN3600420 cap with knurl, tube Ø 42,4 x 1,5 mm hollow V4A, polished

• CN3600430 cap with knurl, tube Ø 42,4 x 2,0 mm hollow V4A, polished

• CN3600440 cap with knurl, tube Ø 42,4 x 2,6 mm hollow V4A, polished

• CN3600460 cap with knurl, tube Ø 48.3 x 2.0 mm hollow V4A, polished

• CN3600470 cap with knurl, tube Ø 48.3 x 2.6 mm hollow V4A, polished

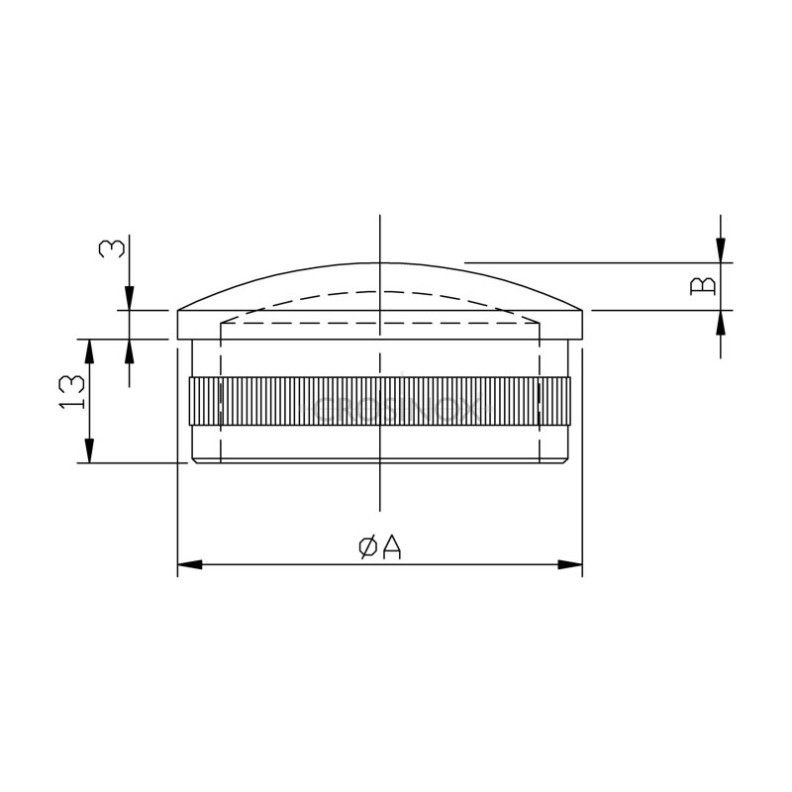

Technical Characteristics:

Product Code	CN3600400	CN3600410	CN3600420	CN3600430
Material	AISI 316	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin	satin
Details	A=33,7 x 2,0 mm; B=4	A=33,7 x 2,6 mm; B=4	A=42,4 x 1,5 mm; B=5	A=42,4 x 2,0 mm; B=5
Type	empty	empty	empty	empty







Product Code	CN3600440	CN3600460	CN3600470
Material	AISI 316	AISI 316	AISI 316
Surface	satin	satin	satin
Details	A=42,4 x 2,6 mm; B=5	A=48,3 x 2,0 mm; B=6,5	A=48,3 x 2,6 mm; B=6,5
Type	empty	empty	empty
